出口便携式轴重秤中英文介绍

十分优良的动态检测性能，度；

The excellent performance of dynamic detection, high precision;

便携式轴重秤称重说明：

The single axis 30 tons of portable weighing instrument that axle:

单片板载重：15T

Monolithic plate load: 15T

两片板载重：30T

Two plate load: 30T

单轴总载重：30T

Single axle load: 30T

轴重仪计量方式：zui大称量=单轴总载重×汽车轮轴排数

Axle load meter: maximum uniaxial load x = total car axle row number

例如：二排轴汽车：zui大载重量=30T×2=60吨

For example: two row of axle vehicles: the maximum load weight =30T * 2=60 tons

例如：三排轴汽车：zui大载重量=30T×3=90吨

For example: three row of axle vehicles: the maximum load weight =30T * 3=90 tons

例如：四排轴汽车：zui大载重量=30T×4=120吨

For example: four row of axle vehicles: the maximum load weight =30T * 4=120 tons

例如：五排轴汽车：zui大载重量=30T×5=150吨

For example: five row of axle vehicles: the maximum load weight =30T * 5=150 tons

例如：六排轴汽车：zui大载重量=30T×6=180吨

For example: six row of axle vehicles: the maximum load weight =30T * 6=180 tons

..................以此类推即可，如还是不明白请致电咨询。

.................. And so on can, if still do not understand please call advisory.

便携式轴重秤产品尺寸：

Single axis 30 ton axle load meter portable product size:

轴重板尺寸： W430*L700*H30mm ×2块

Axle load plate size: W430*L700*H30mm * 2

黑色橡胶引坡：W330*L700mm ×4块

Black rubber lead slope: W330*L700mm * 4

仪表尺寸：W260*L360*H160mm ×1只

Instrument size: W260*L360*H160mm * 1

轴重板带铝合金包装尺寸：L940*W590mm*H110mm

Axle load plate with Aluminum Alloy packing size: L940*W590mm*H110mm

引坡带铝合金包装尺寸：L760*W360*H200mm

Aluminum alloy packing size: L760*W360*H200mm

轴重板纸箱外包装尺寸：L960*W630*H130mm ×2件

Axle board carton packaging size: L960*W630*H130mm * 2

引坡加纸箱外包装尺寸：L790*W430*H21mm ×1件

Lead slope and carton packing size: L790*W430*H21mm * 1

仪表纸箱包装尺寸：L510*W340*H215mm ×1件

Instrument carton packing size: L510*W340*H215mm * 1

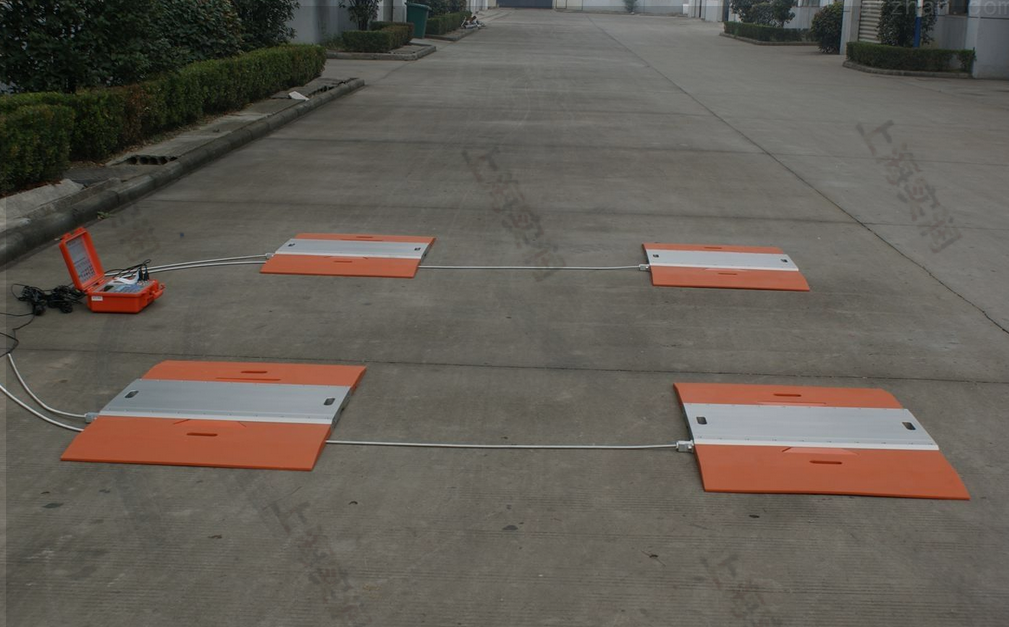

便携式地磅（轴重仪）称重原理：

Portable weighbridge weighing principle (Zhou Zhongyi):

便携式轴重秤是通过称量被检测车辆的每一轴（或轴组）的重量，经过累加，得到车辆的总重量。它既可以静态称量，也可以匀速动态称量，在动态称量时，称重仪表可自动收尾而累加出车辆的总重量。该轴重仪还用于公路车辆的限检测或计重收费中，这时需要配套红外光栅、轮轴识别器及称重管理器，完成复杂的称重检测过程。

Portable axle load meter is by weighing is detected each axis (or group of axles) the weight of the vehicle, after accumulation and vehicle total weight. It can be static weighing, can also be uniform dynamic weighing, dynamic weighing, weighing instruments can be automatically ending and accumulated the total weight of the vehicle. The axle load meter is also used for highway vehicle overrun detection or charges, then the need for supporting infrared grating, axle recognizer and weighing manager to complete the complex weighing detection process.
